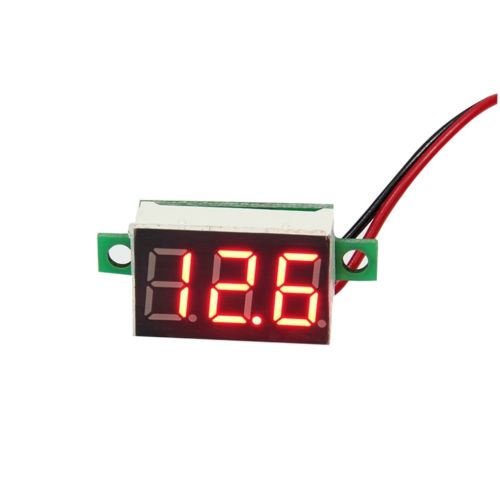

Red LED Panel Voltage Meter 3-Digital Adjustment Voltmeter

-automatic adjustment ,when less than 10V accurate to 0.01V, more than 10V accurate to 0.1V
-self-powered version, Two wire connection, with reverse polarity protection -No power supply needed
Specifications:
-Display color: Red
-Two-wire Measurement range: DC 4.50-30.0V
-Working Current:< 23mA -Working Temperature: -10C-65C -Minimum input voltage: DC 4.5V(Lower than 3.5V, the brightness will be weakened, but this will not affect the accuracy of measurement)
-Maxmum input voltage: DC 32V(Higher than this voltage is has a risk of overburning)
-Permissible error: 1%(¡À1 digit)
-Display mode: three digit 0.36''LED digital tube
-Size: 21.5 x 13 x 8mm (L*W*H) -Speed ratio: about 200ms/time
-Lead wire length: 15cm -Net Weight:5 g approx. -Weight:15 g approx.

Ideal for electronics, Hobby, Raspberry Pi, Arduino experiment
