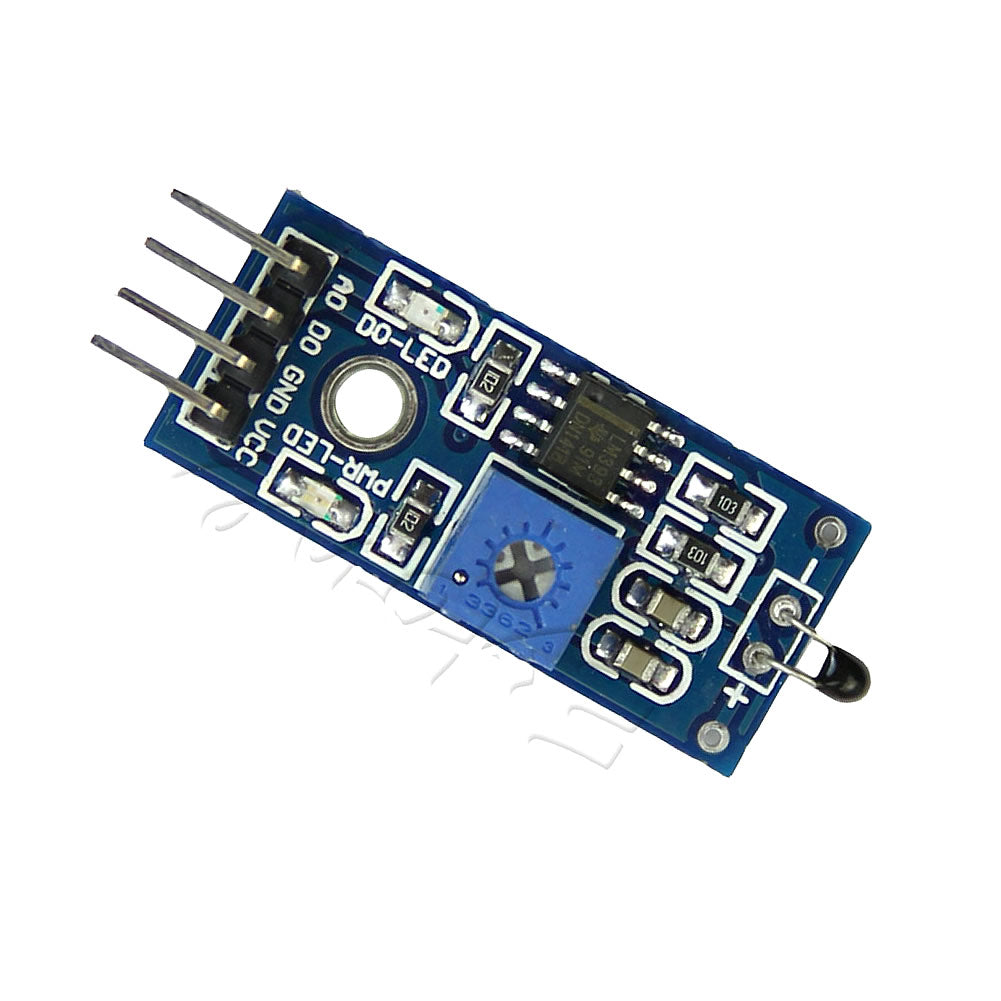

Digital Thermal Sensor Module for Arduino Raspberry Pi

-NTC thermistor sensor , good sensitivity
-The output signal clean waveform , driving ability 15mA
-Adjust the temperature distribution bit detection threshold
-Working voltage 3.3V-5V
-The output format: Digital switching output (0 and 1)
-With bolt holes for easy installation
-Using a wide voltage LM393 comparator

Module usage:
1. The thermal resistance of the module is very sensitive to the ambient temperature , generally used to detect the ambient temperature
2. Through the adjustment of the potentiometer , can change the temperature detection threshold (ie, temperature control value) , if necessary to control the ambient temperature is 50 degrees , the module in the corresponding ambient temperature to which the green light , DO output is HIGH level falls below the set temperature value, the output is high , the green light does not shine
3. DO output can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the ambient temperature changes
4. DO OUR outputs can directly drive the relay module , which can be composed of a thermostat to control the operating temperature of related equipment can also be connected to the fan used to heat and other
5. The detection range of the module's temperature 20-80 °C
6. This module can also be replaced with a wire temperature sensor for water temperature, water tank controlled Size: 3.2x1.4cm/1.25*0.55"
